Characteristics
✅ Raspberry Pi Form Factor
✅ Controls from 1 up to all 512 DMX Channels

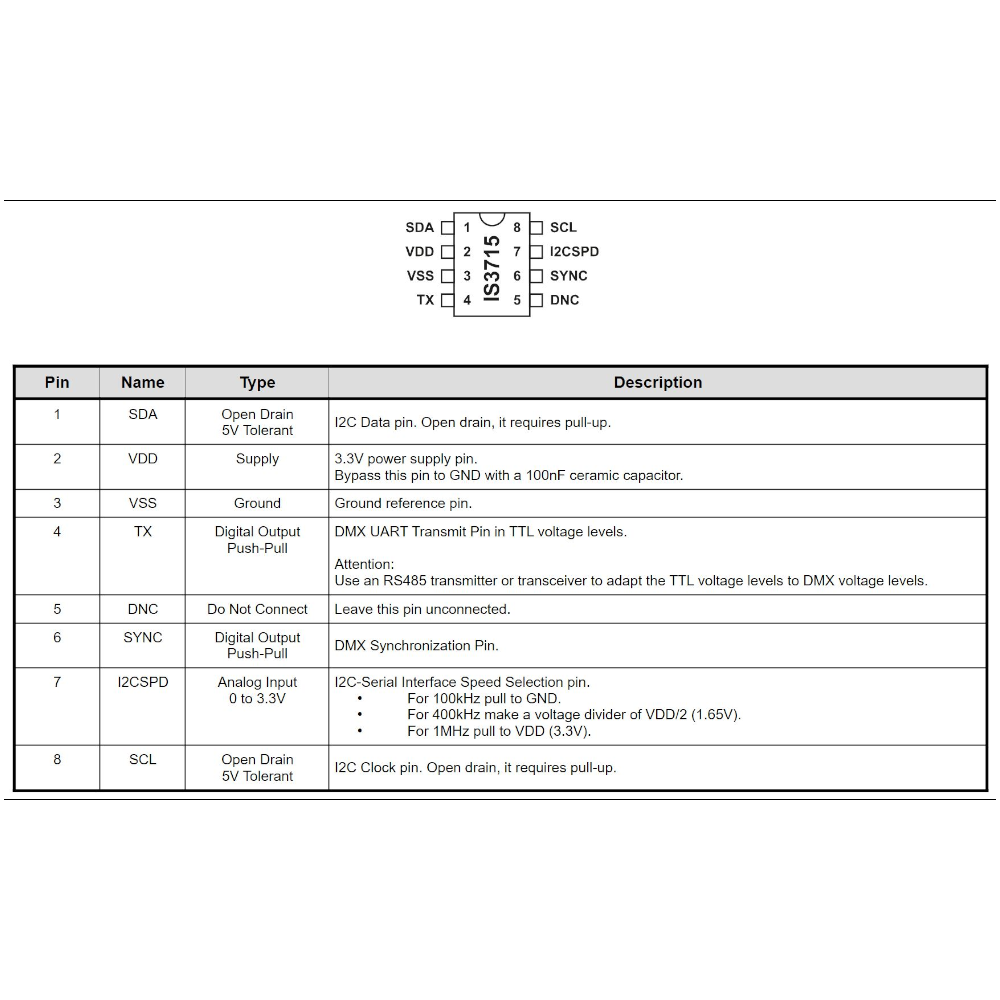

✅ Compact, easy-to-solder SO8N package
✅ I2C speeds: 100kHz, 400kHz, and 1MHz
Advantages
✅ Reduces engineering time and costs
✅ Reduces product time-to-market
✅ Fewer ISRs, lower microcontroller CPU load
✅ Reduces microcontroller memory usage
Applications
✅ DMX Lighting
✅ Custom DMX Devices
✅ Interactive Devices
✅ Dimmers
Out of stock

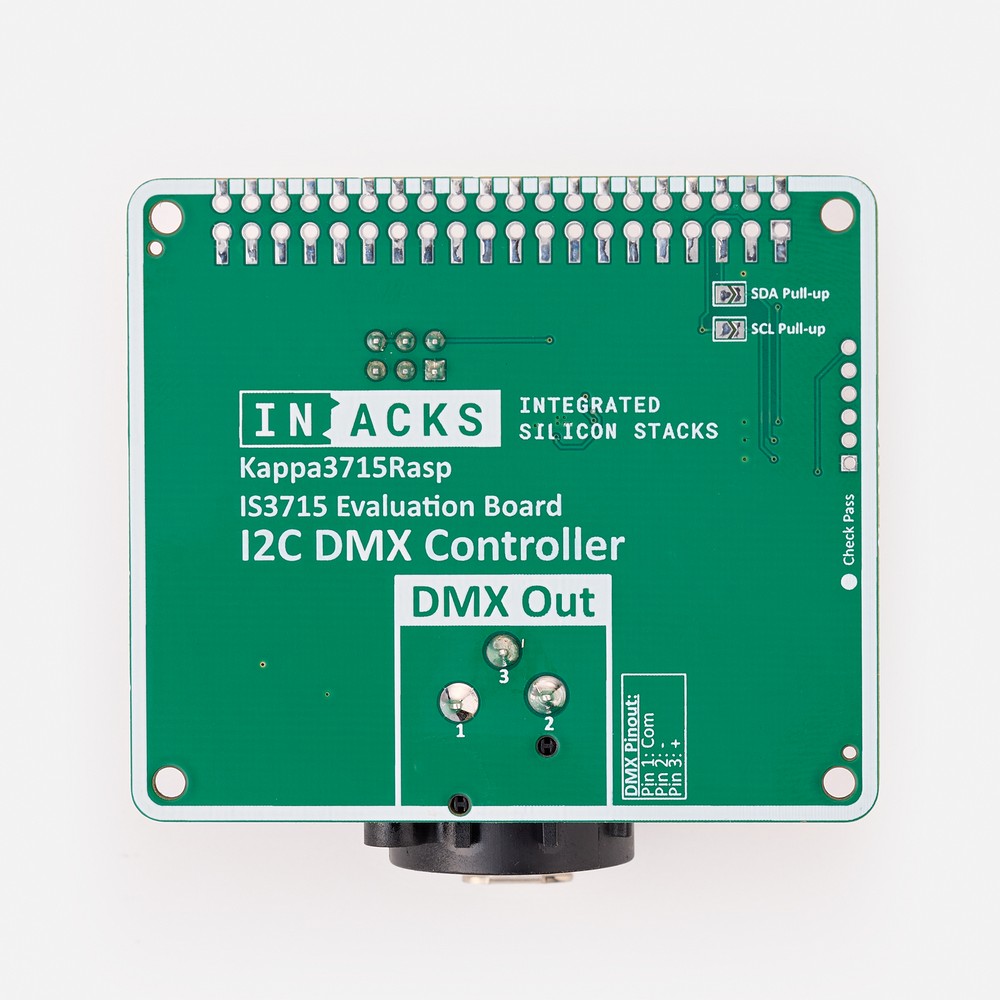

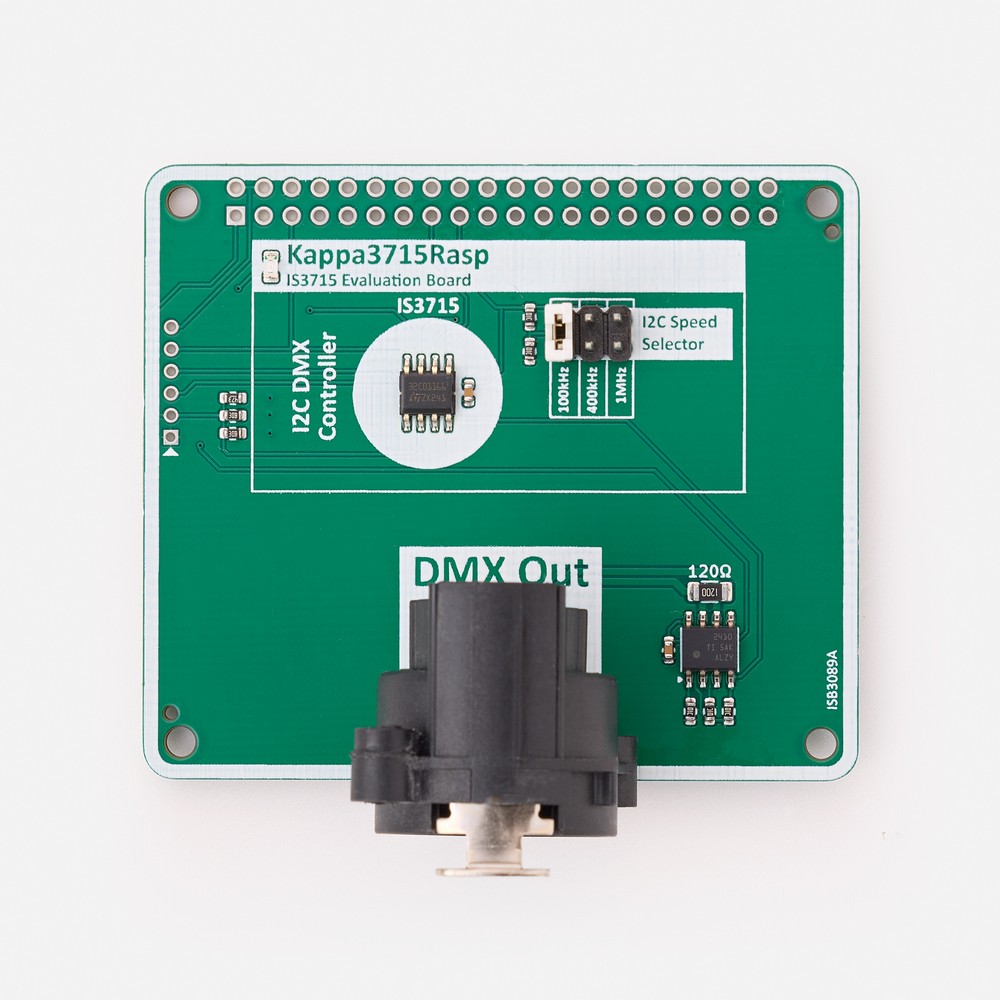

The Kappa3715Rasp is an evaluation board for the IS3715 I2C DMX Controller chip. It allows engineers to evaluate the IS3715 without soldering or building a prototype, providing a ready-to-use solution. The board includes 3x sliders to easily test the DMX control.

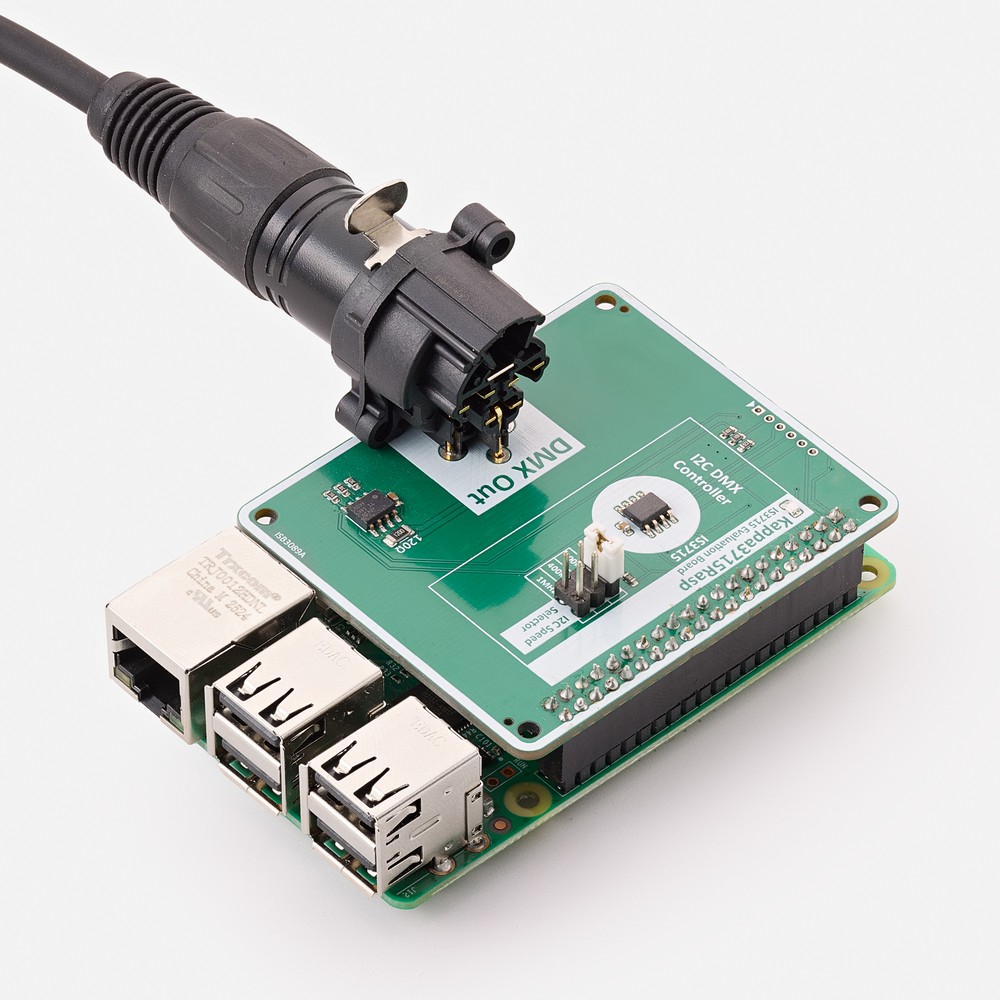

Designed as a shield with the Raspberry Pi form factor, the Kappa3715Rasp leverages its widespread popularity and ensures compatibility with various single-board computers (SBCs), including Asus Tinker Board, Orange Pi, Rock Pi, Banana Pi, and others. It features an XLR-3 connector for seamless integration into DMX equipment.

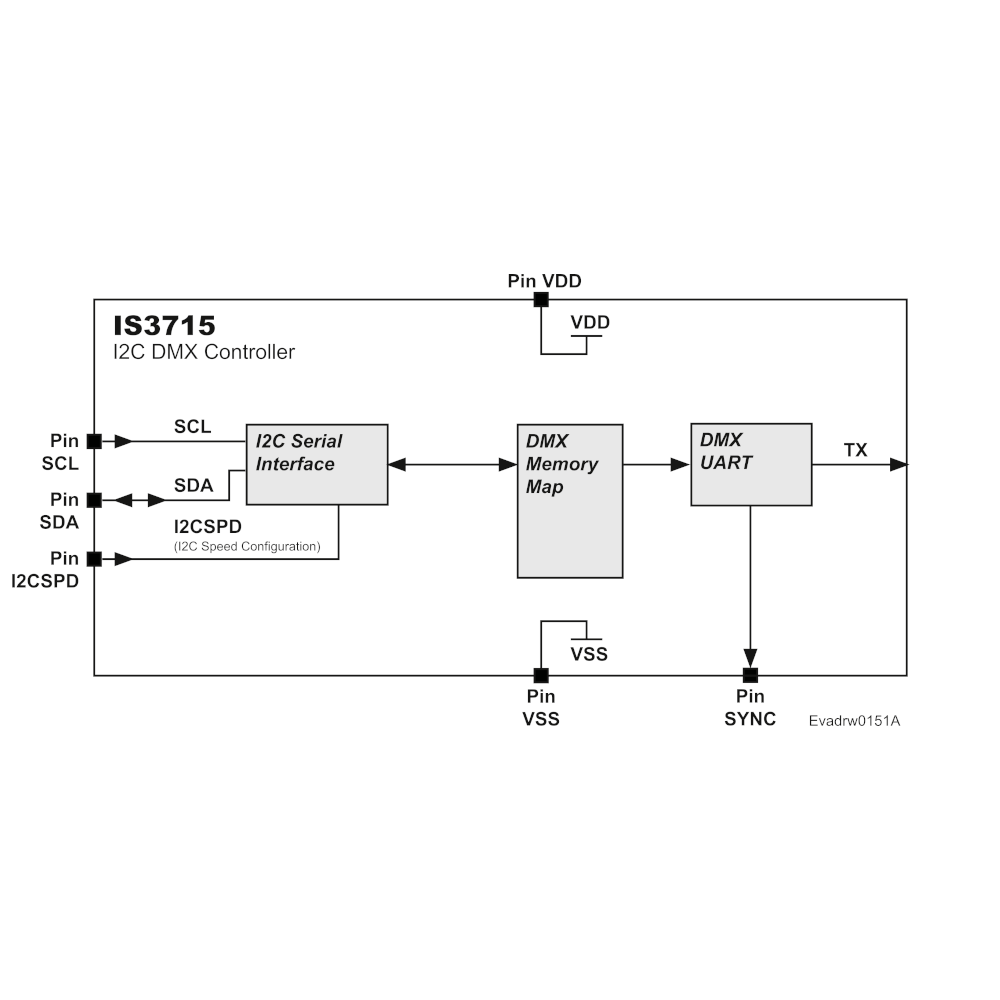

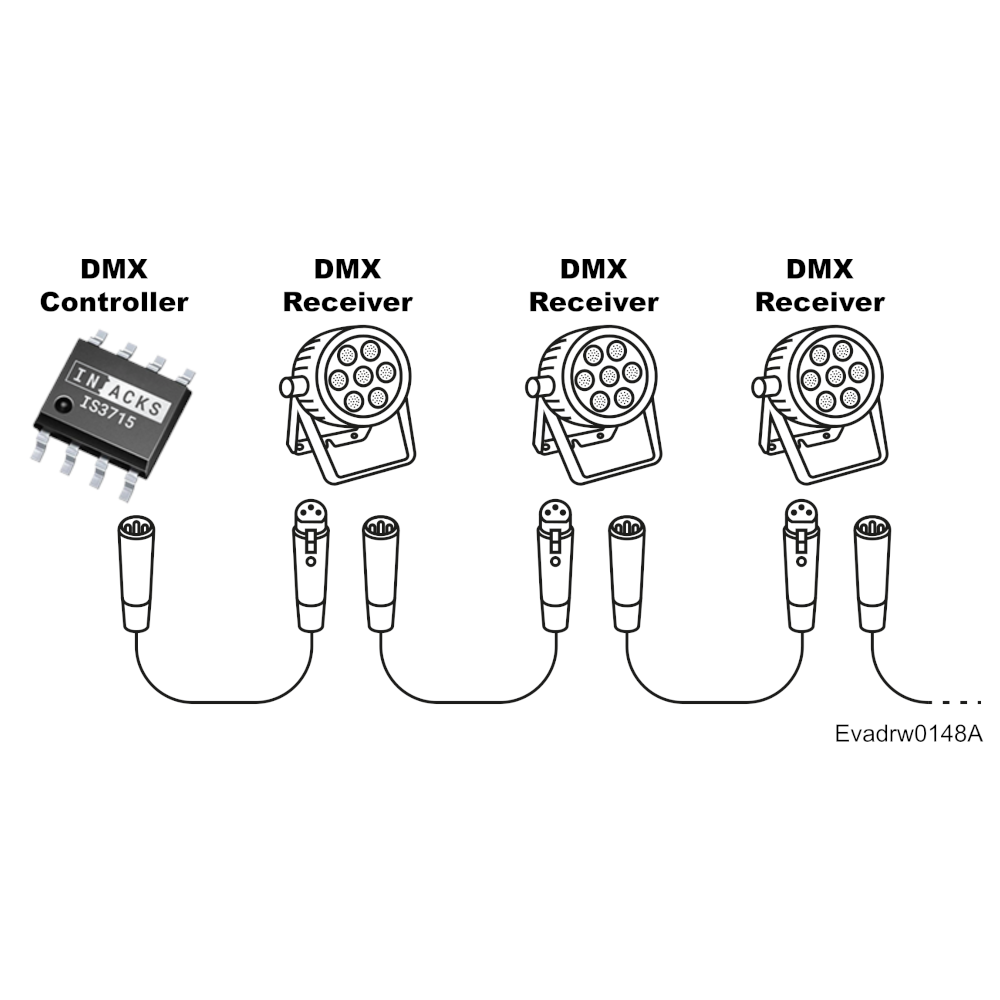

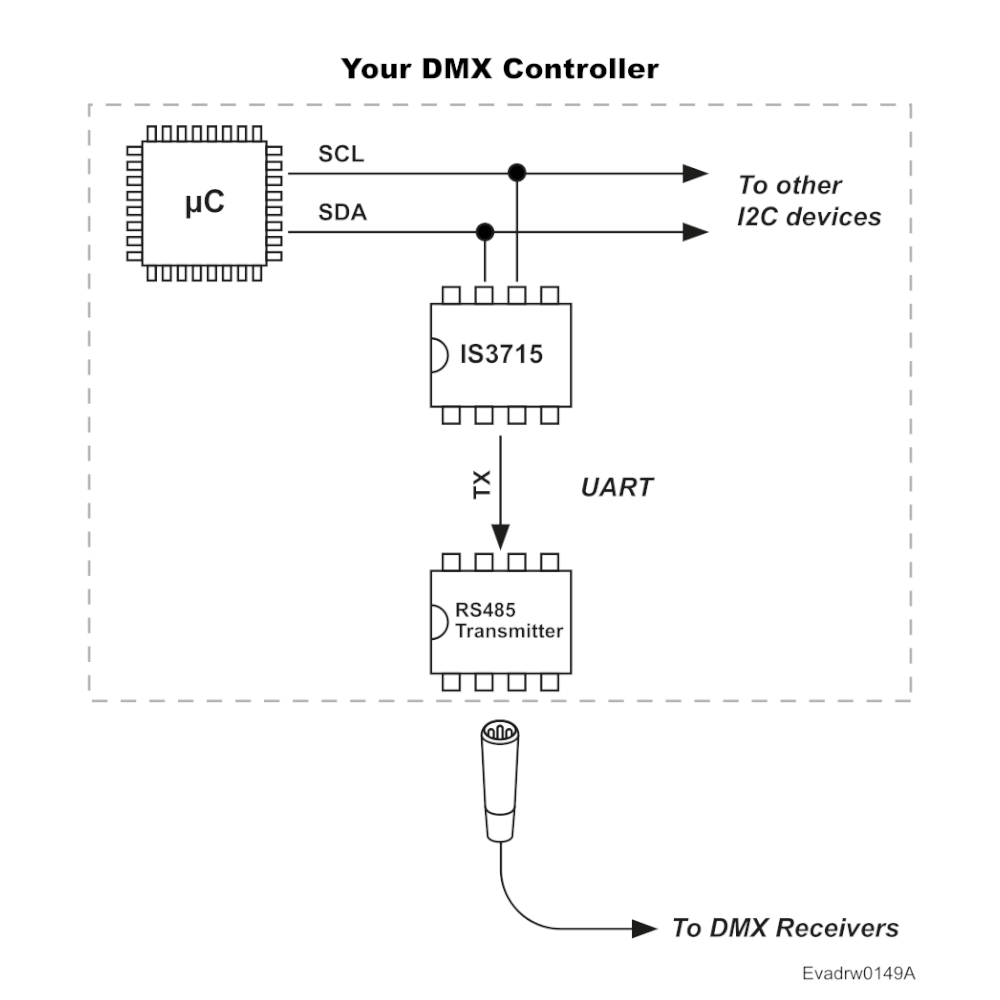

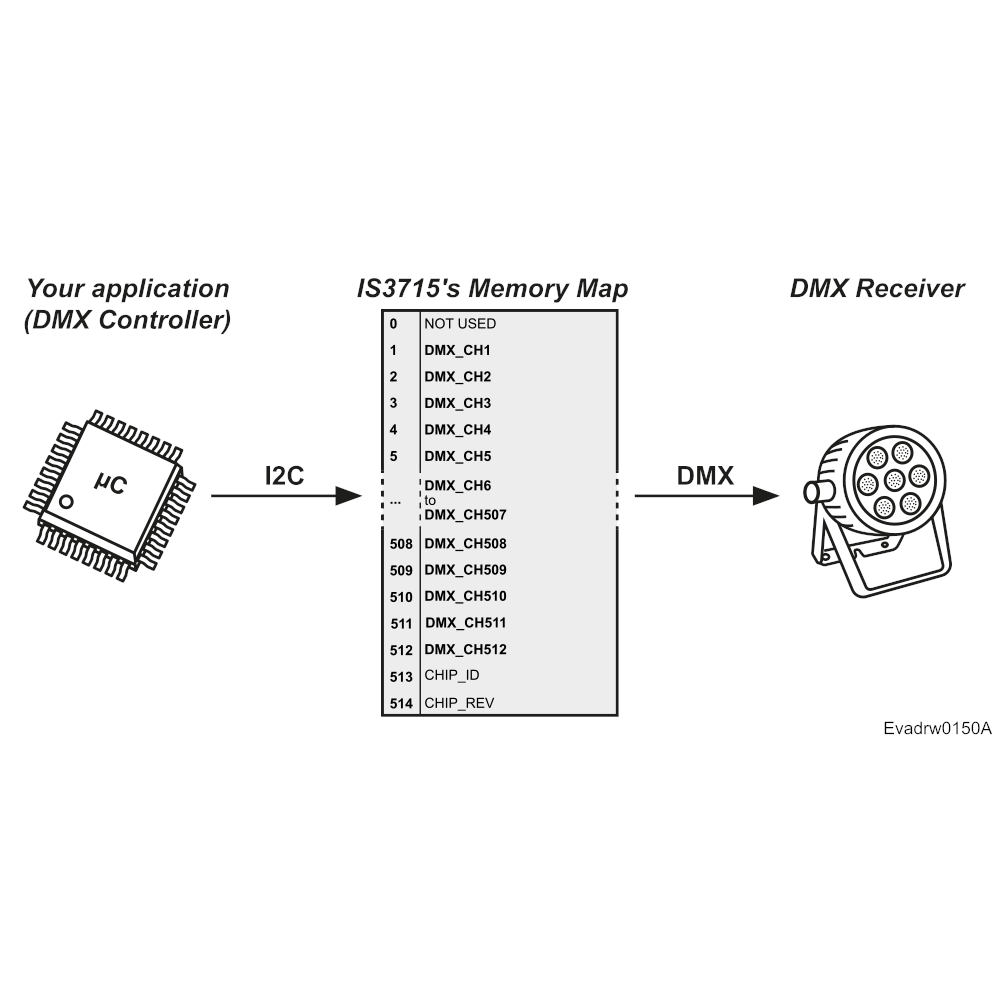

The IS3715 is an ideal solution for controlling the DMX protocol via I2C, reducing CPU load, and eliminating the need for dedicated pins. It supports all 512 DMX channels.
(This product includes the Kappa3715Rasp. SBC like Raspberry Pi are not included.)
