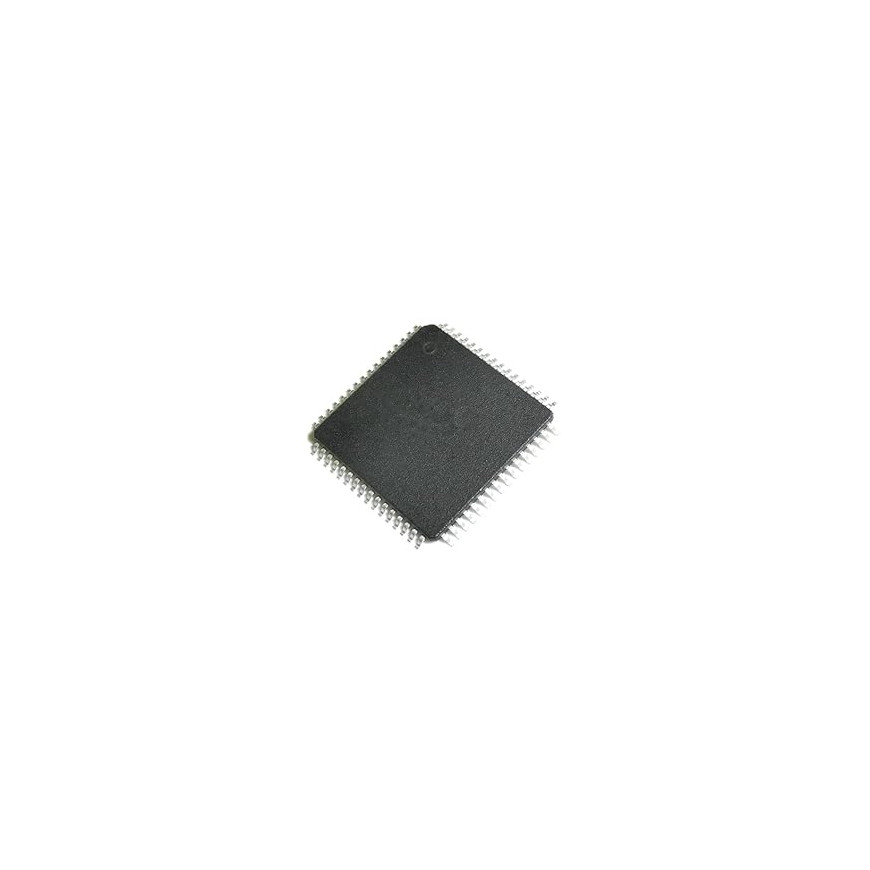

Art-Net Controller – IS3740

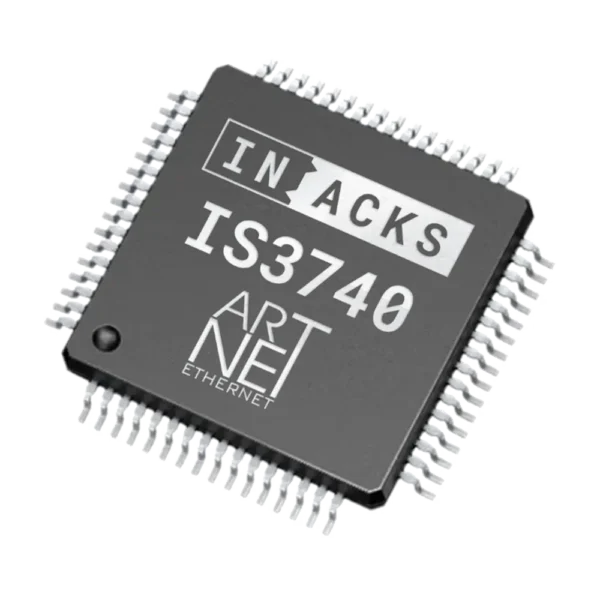

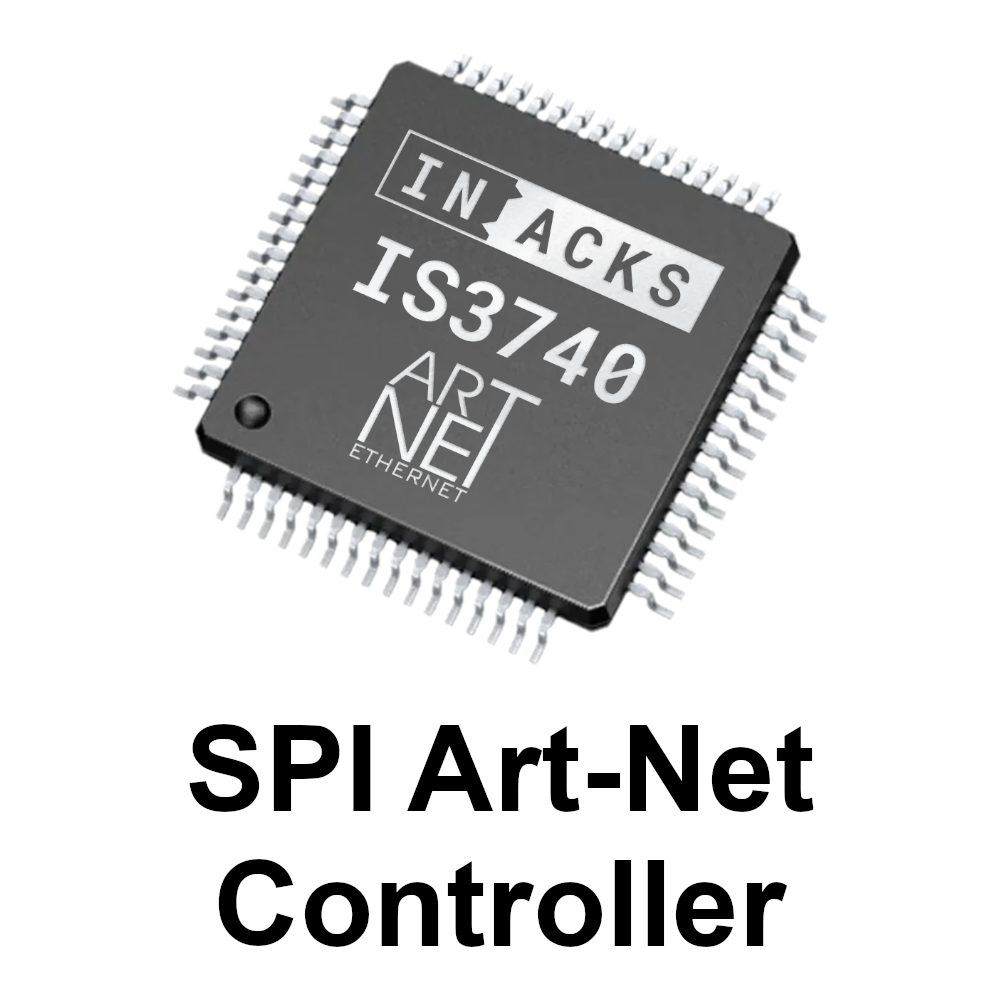

The IS3740 is an Art-Net controller chip. It receives the DMX data from your microcontroller via SPI and converts it to Art-Net data. This chip handles all the Ethernet protocol complexity.

Art-Net™ Designed by and Copyright Artistic Licence Engineering Ltd.

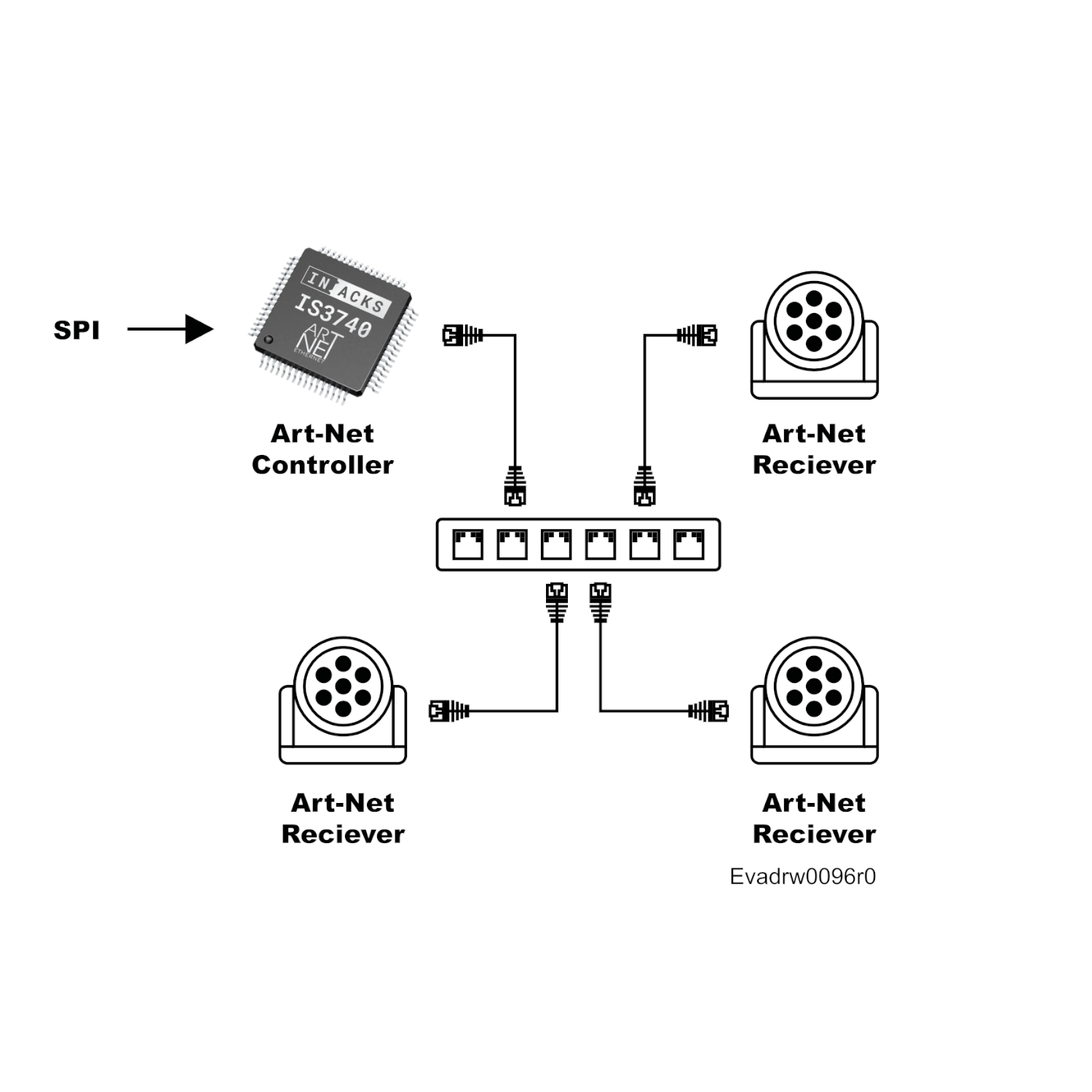

How Does It Work?

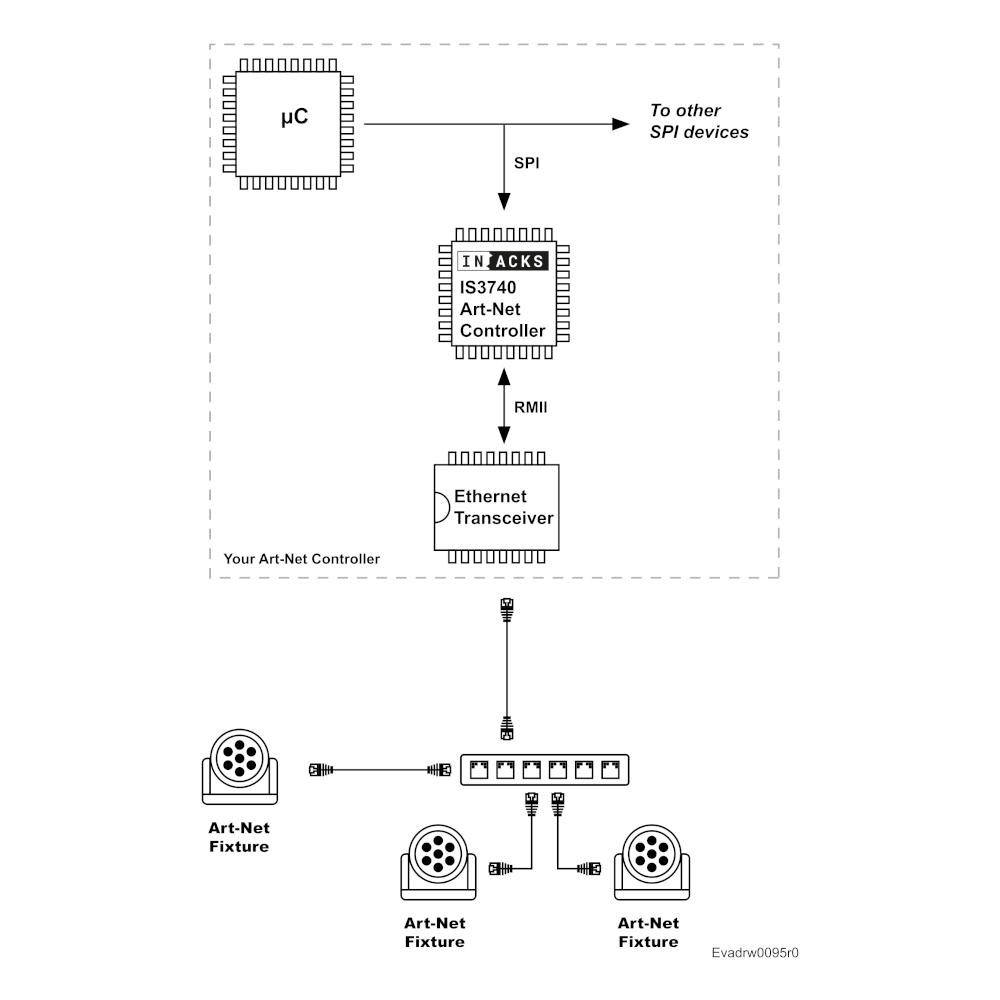

The chip provides two interfaces:

• An SPI interface for your microcontroller, FPGA, Arduino, etc.
  ➜ This is where your system writes the DMX data.
• A RMII interface to connect your preferred Ethernet PHY transceiver chip, like the LAN8720.
  ➜ This is where the chip acces the Ethernet to inject the Art-Net data.

Default Chip Settings

Art-Net Settings:

• IP: DHCP
