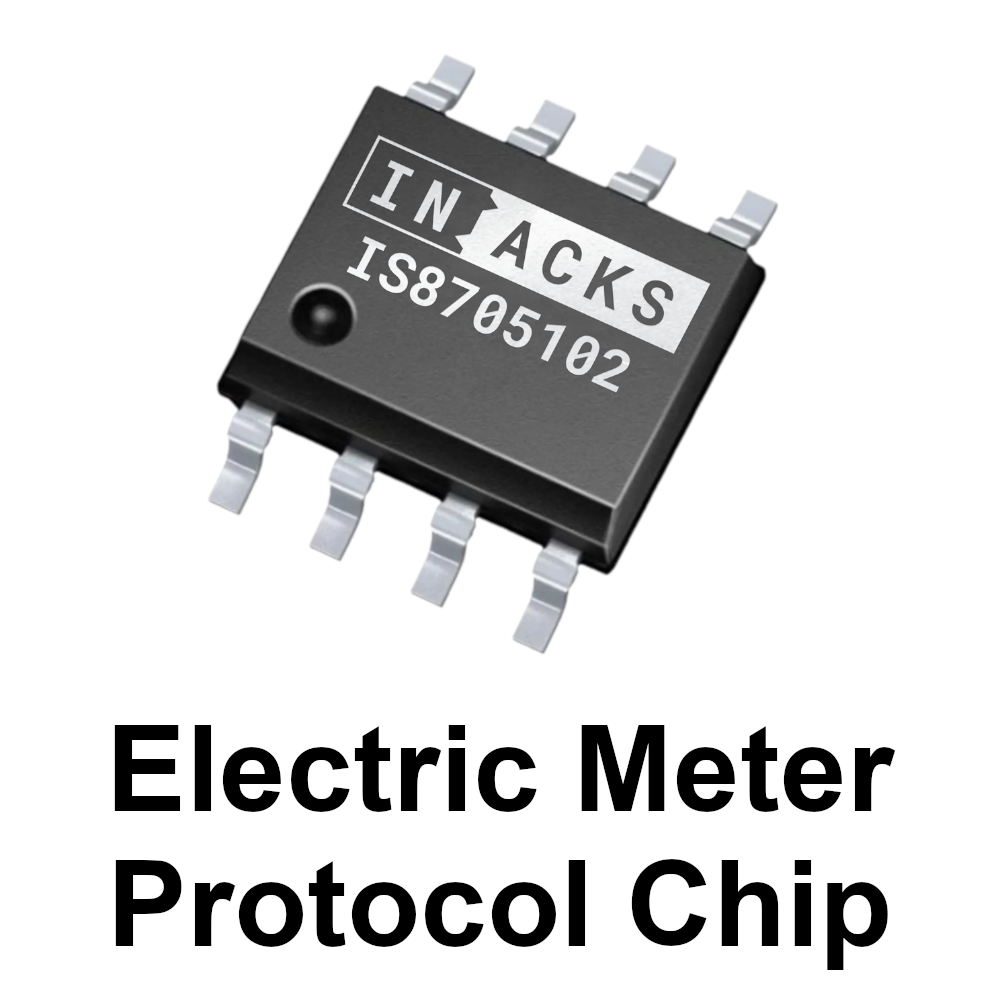

Energy Meter IEC870-5-102 Chip – IS8705102

Introducing the IS8705102: The Ultimate Energy Meter IEC 870-5-102 Chip

The Energy Meter IEC 870-5-102 Chip (IS8705102) is a specialized communication controller that fundamentally changes how manufacturers integrate the complex IEC 60870-5-102 protocol. This standard, a companion standard within the IEC 60870-5 series, is critical for the reliable transmission of integrated totals and counter values in electric power systems, particularly in specialized European markets. Implementing this protocol in firmware involves meticulous handling of the FT1.2 frame format and link layer procedures, which is notoriously difficult and time-consuming.

Eliminate Protocol Development Complexity

By using the IS8705102, you offload the entire IEC 870-5-102 protocol stack to dedicated, verified silicon. This strategic move allows your main microcontroller to bypass the intricate details of link layer handling, data encoding, and command sequencing. The result is a dramatic reduction in development costs and a significantly shorter time-to-market for your energy metering products.

Key advantages of this hardware-based solution include:

• Cost Savings: Avoid the high expense of hiring specialized protocol engineers and the lengthy certification process for custom firmware.

• Simplified Interface: Communicate with the chip via a simple, widely supported I2C interface, requiring minimal host resources and only two communication wires.

• Guaranteed Accuracy: The chip ensures strict adherence to the FT1.2 frame format and the specific transmission procedures required for reliable transfer of integrated totals.

Perfect for Reliable Data Collection

The IEC 870-5-102 standard is inherently designed for master/slave communication, typically over serial media like RS-232 or RS-485, focusing on periodic retrieval of energy values. The IS8705102 excels in this environment, handling the requests and responses, allowing the host system to simply ask for the meter data.

For reliable data storage adjacent to your meter, consider integrating our powerful Serial EEPROM products. Furthermore, to understand the foundational principles of this family of standards, review the IEC 60870-5 Wikipedia page.

Technical Focus on Telecontrol Systems

While many utility protocols focus on general SCADA data, the Energy Meter IEC 870-5-102 Chip is laser-focused on the specific requirements for energy data. This specialization is vital for compliance in regions where this standard is mandatory for automatic billing and central data acquisition. The IS8705102 is the smartest, fastest path to IEC 870-5-102 compliance and efficient telemetry implementation.
