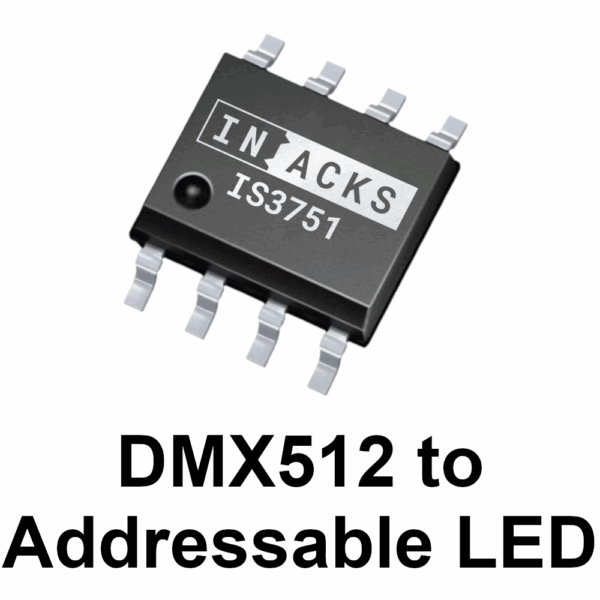

DMX to Addressable LED Controller Chip – IS3751

Name: DMX to Addressable LED Controller Chip – IS3751
SKU: IS3751-S8
Availability: InStock

DMX to Addressable LED Controller Chip – IS3751 - Image 2

DMX to Addressable LED Controller Chip – IS3751 - Image 3

DMX to Addressable LED Controller Chip – IS3751 - Image 4

DMX to Addressable LED Controller Chip – IS3751 - Image 5

✅ Control up to 1270LEDs

✅ FPS: 27 Hz

✅ Compatible with:
– WS2811
– WS2812 / WS2812B / WS2812C
– WS2813
– WS2815
– NeoPixel
– SK6812
– GS8208
– All color sequences: GRB, RGB, etc.
– LEDs with 3, 4, and more colors: GRBW, RGBW, RGBWC (LEDs with warm and cold white)

SKU: IS3751-S8

Description

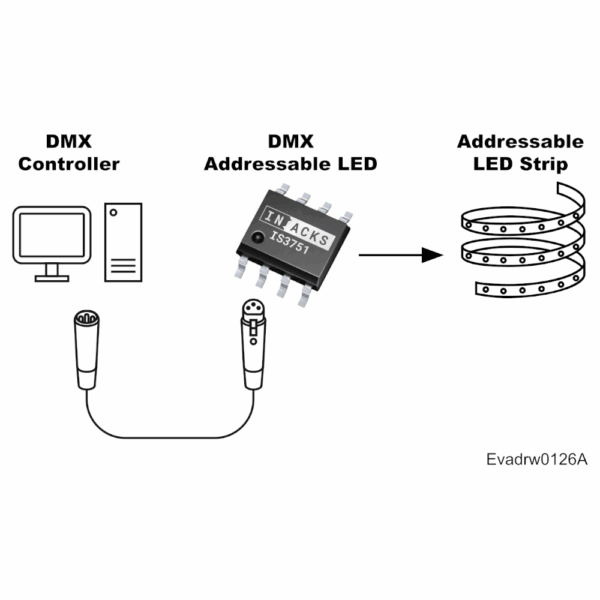

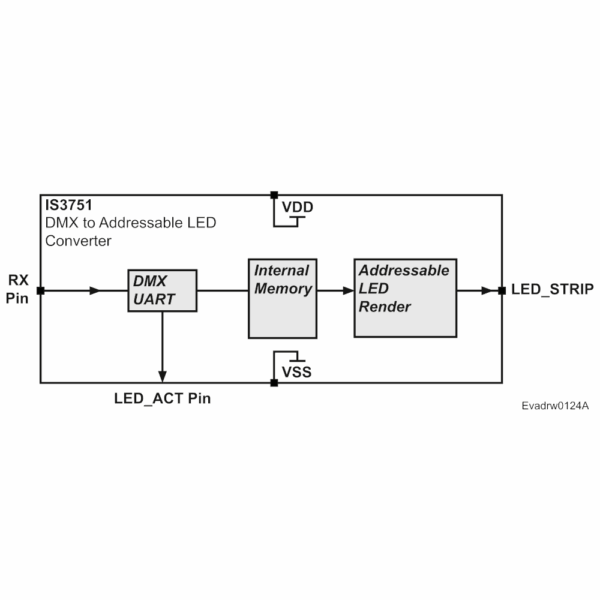

The IS3751 converts DMX data directly into addressable LED signals for WS2811, WS2812, and similar LEDs.

It groups DMX512 data in sets of 3 channels (RGB) and can control up to 170 LEDs directly—no microcontroller required. This solution makes it easy to build light fixtures with no coding needed.

Specs

Drives up to 170 3-color addressable LEDs or 128 4-color addressable LEDs
FPS: 27 Hz
Compatible with:
- WS2811
- WS2812 / WS2812B / WS2812C
- WS2813
- WS2815
- NeoPixel
- SK6812
- GS8208
- All color sequences: GRB, RGB, etc.
- LEDs with 3, 4, and more colors: GRBW, RGBW, RGBWC (LEDs with warm and cold white)

Models

Download STEP 3D (SOIC-8_3.9×4.9mm_P1.27mm.step © 2025 KiCad — CC BY-SA 4.0)
Download KiCad Symbol (compatible with Altium Designer)
Download KiCad Footprint (compatible with Altium Designer) (SOIC-8_3.9×4.9mm_P1.27mm.kicad_mod © 2025 KiCad — CC BY-SA 4.0)
